A350 Airbus Stelia Cockpit

elisa aero nyc
Protocol
  • A350 Part.11 Stelia Casquette Supérieure
  • ROHS compliant
  • Initiated by : Head of Engineering
  • PC n°: 76H-502/6845
  • Change : Français
MOBILE EDITION
Pick up / Shipping

ELISA
KEY ACCOUNT DEPT
UNITED STATES

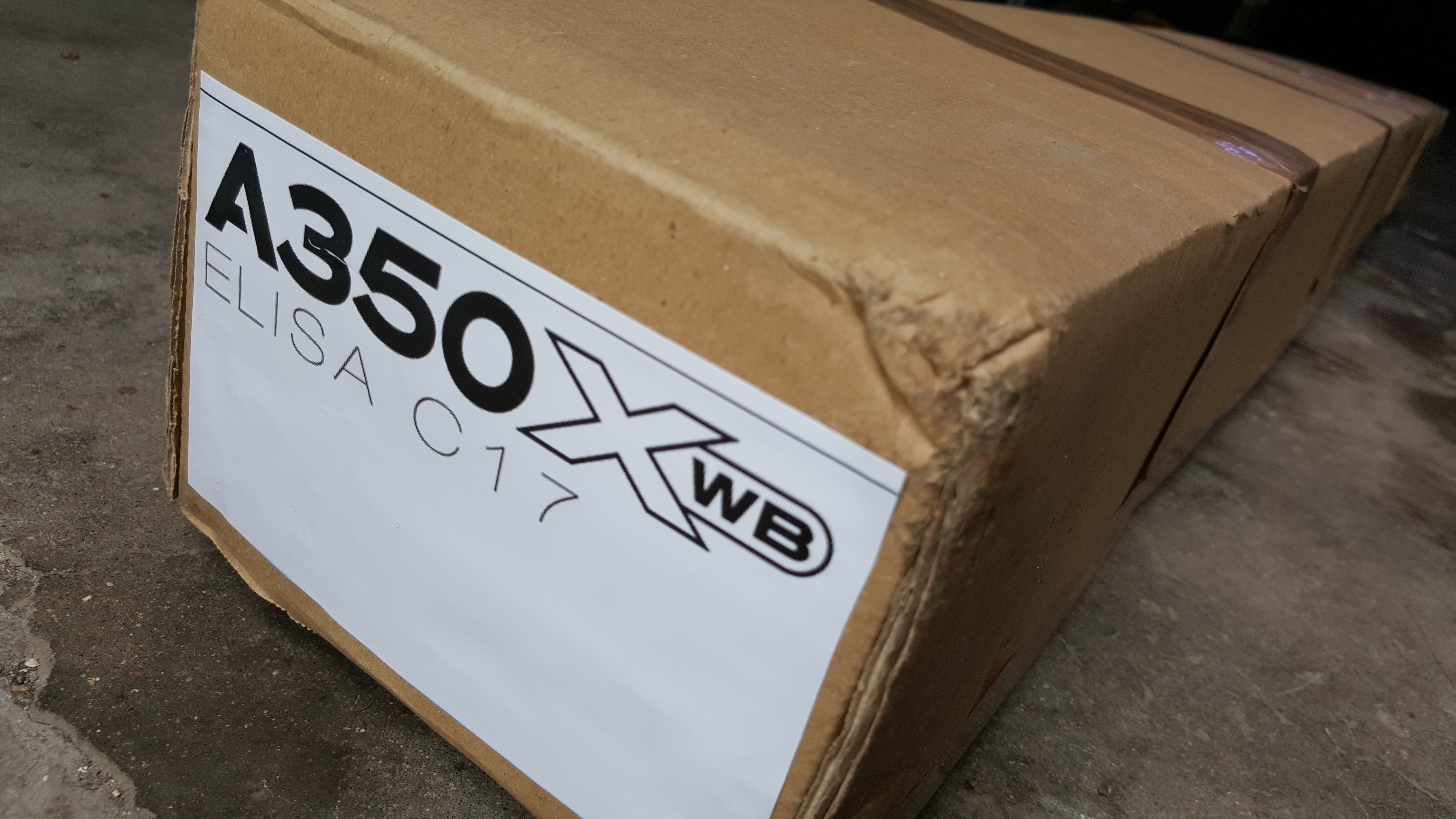

BOX L20 x l20 x H170
WEIGHT 2 kg
See parcel

HOURS Monday to Friday from 9am to 6pm

Fuselage

2 Units
1 Black print
1 Native color print
Vinyl sticker HD 3µm
With and without lamination
With and without mask

DRY STICKING

REQUIRED TOOL
1 soft squeegee
1 Fuselage protection

Elisa aeronautics USA
elisa aeronautics new york
Electro luminescent organs

1  Unit
1 Blue native print E010²
Max résolution: 3 + Elisa C17
Luminance: 190 Cd/m²
Industrial production
Thickness: 2µm
M1F1 encapsulation: none
Liner monobloc: 1 µm
Degre of flexibility +/-: 20°

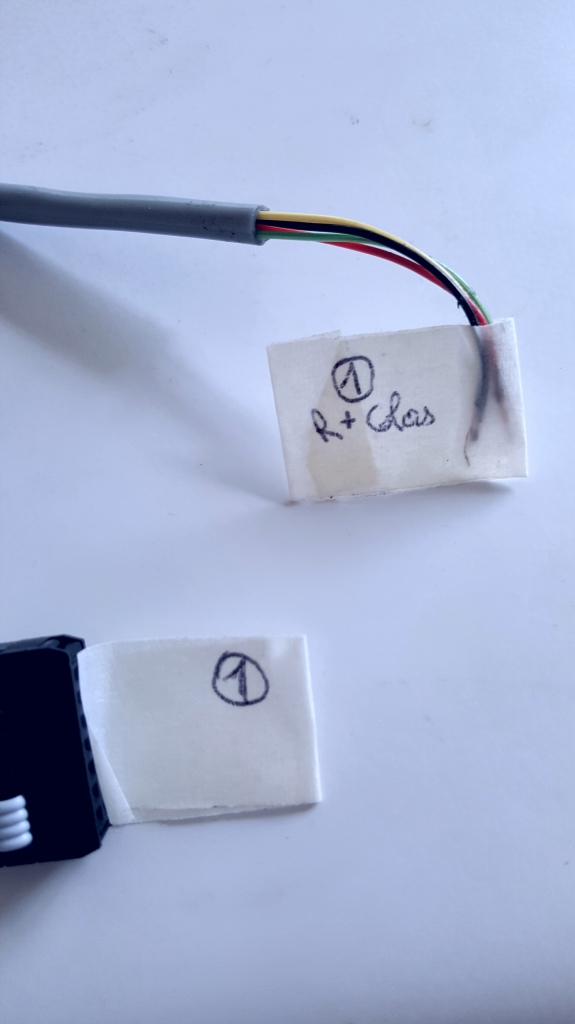

LOCATE EACH 3 WIRES
DRY STICKING.

REQUIRED TOOL
1 soft squeegee
1 Voltmeter

Wiring

3 Units
1 Busbar 2m50

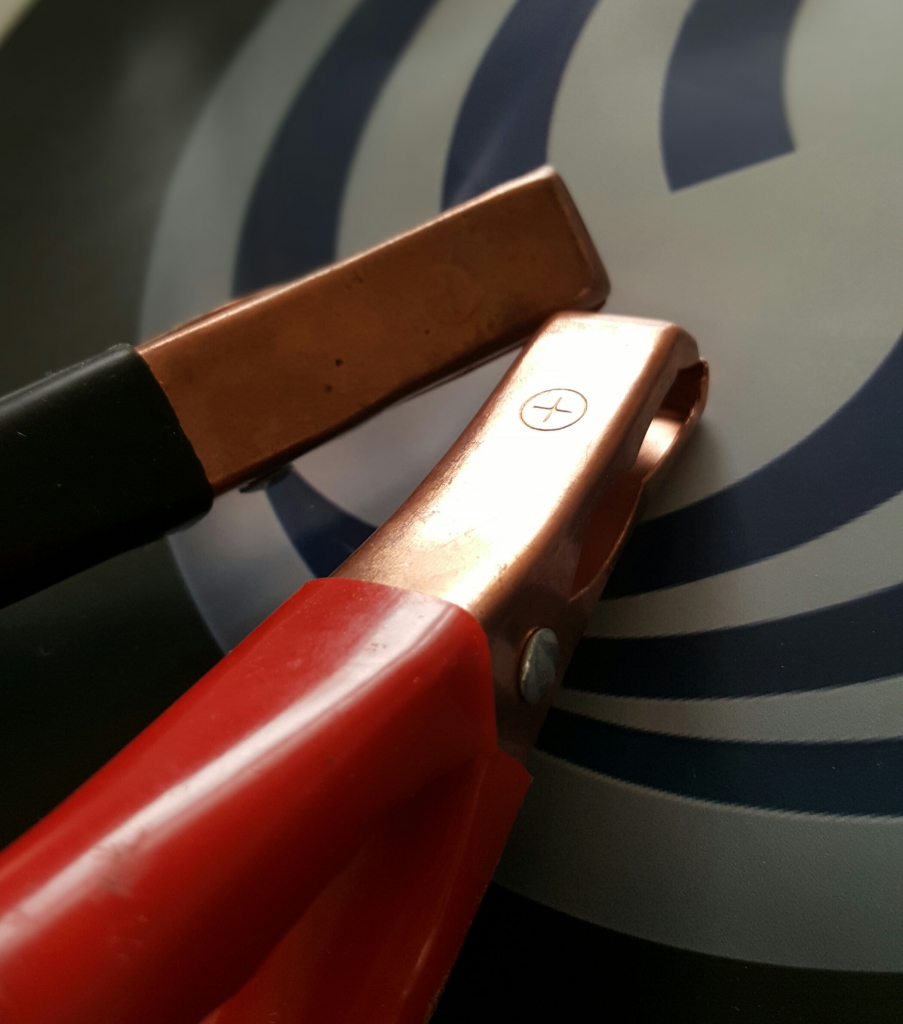

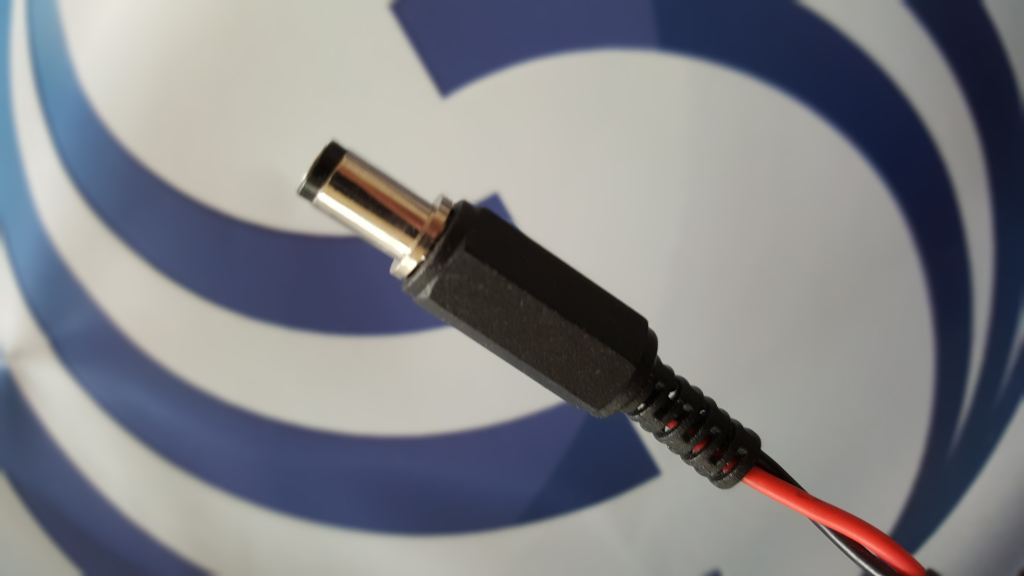

1 jack - battery
1 Auxiliary wire
Apolar
Handmade fit Watch

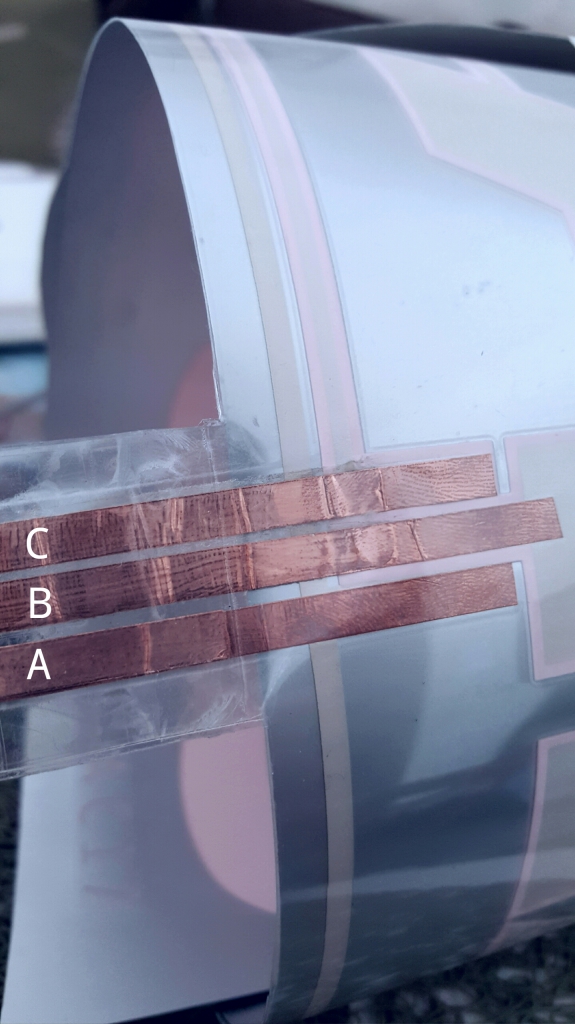

Red + 1 color = common A
1 Yellow = Main Logo B
Black = Second Logo C
Keep alternatively the auxiliary.<
Degree of flexibility 360°

CONNEXION
Plug is isolated, athermic and water resistant.
Drill encapsulation film with a solder. Two small points ( mm ) are enough to create some power supply plug.

REQUIRED MATERIEL
1 Solder station + tin
Wiring
Miscellaneous

AVIATION WIRING PROVIDE FOR MASS PRODUCTION

Elisa aeronautics new york
Electronic

1 Symbiote
12 VDC A350 Neo
A.I. Add-on: Driver
Electromagnetic shield : not selected
Commercial Flight qualification : not selected
Clamping
ROHS regulation
Designed in United states

The Airbus LOGO must be linked to 2 wires at least to cumulate enough power.
See electricity scheme >

Each letters are independents.

Administrative

RECORDED DEVICE
Before August, 10 2016

Contract publicity Airbus-Elisa
See return address >
