Protocol

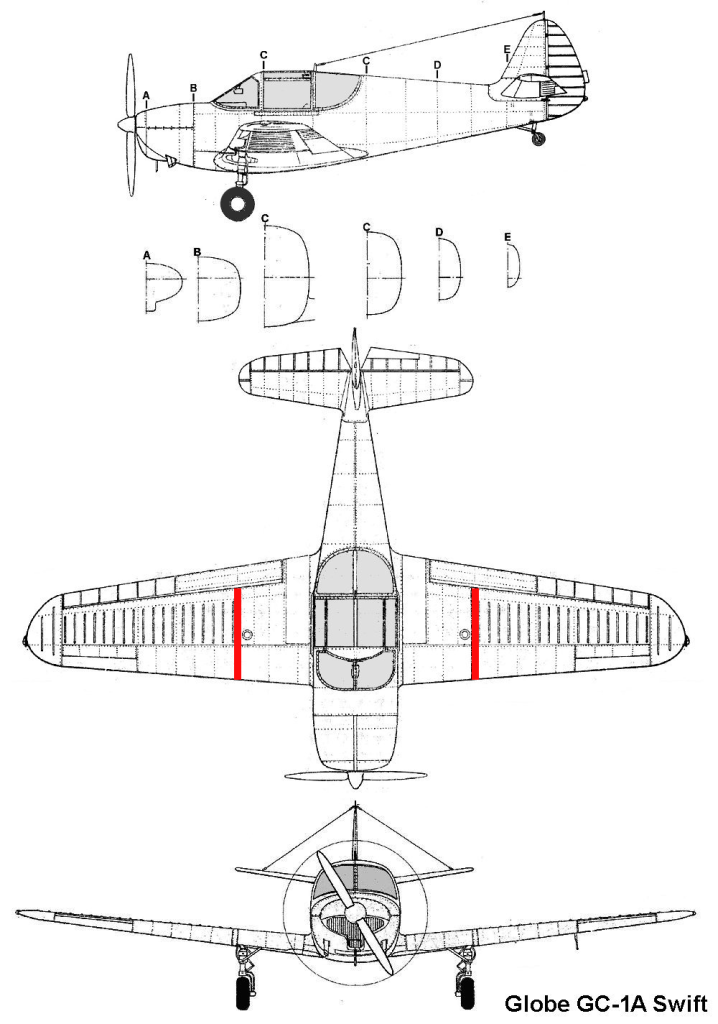

Globe Swift Ceinture d'aile
ROHS compliant
Initiated by : Head of Engineering
PC n°: 78H-512/9144
Change : Français

MOBILE EDITION

Statut

Sent

See Track n°

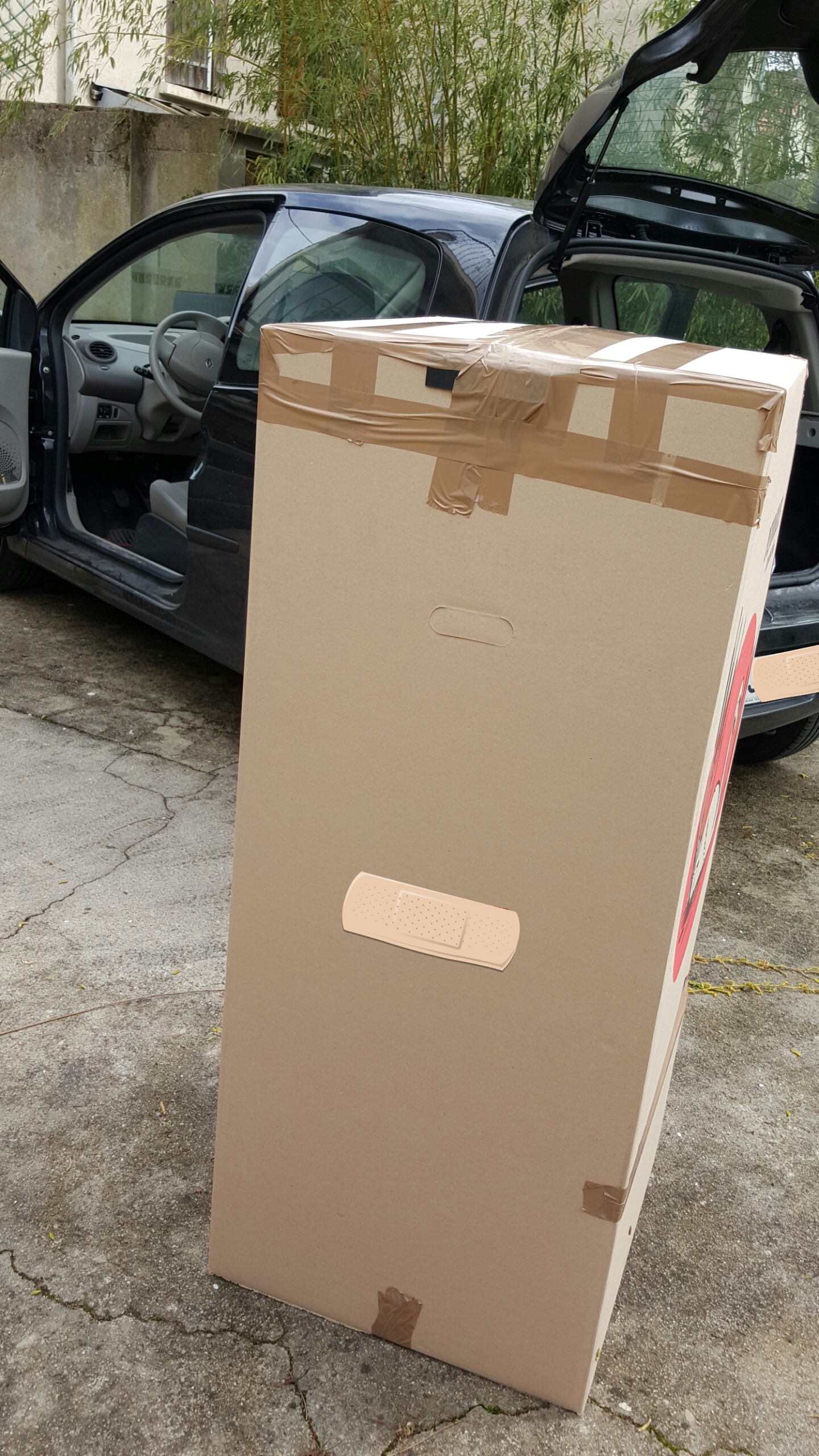

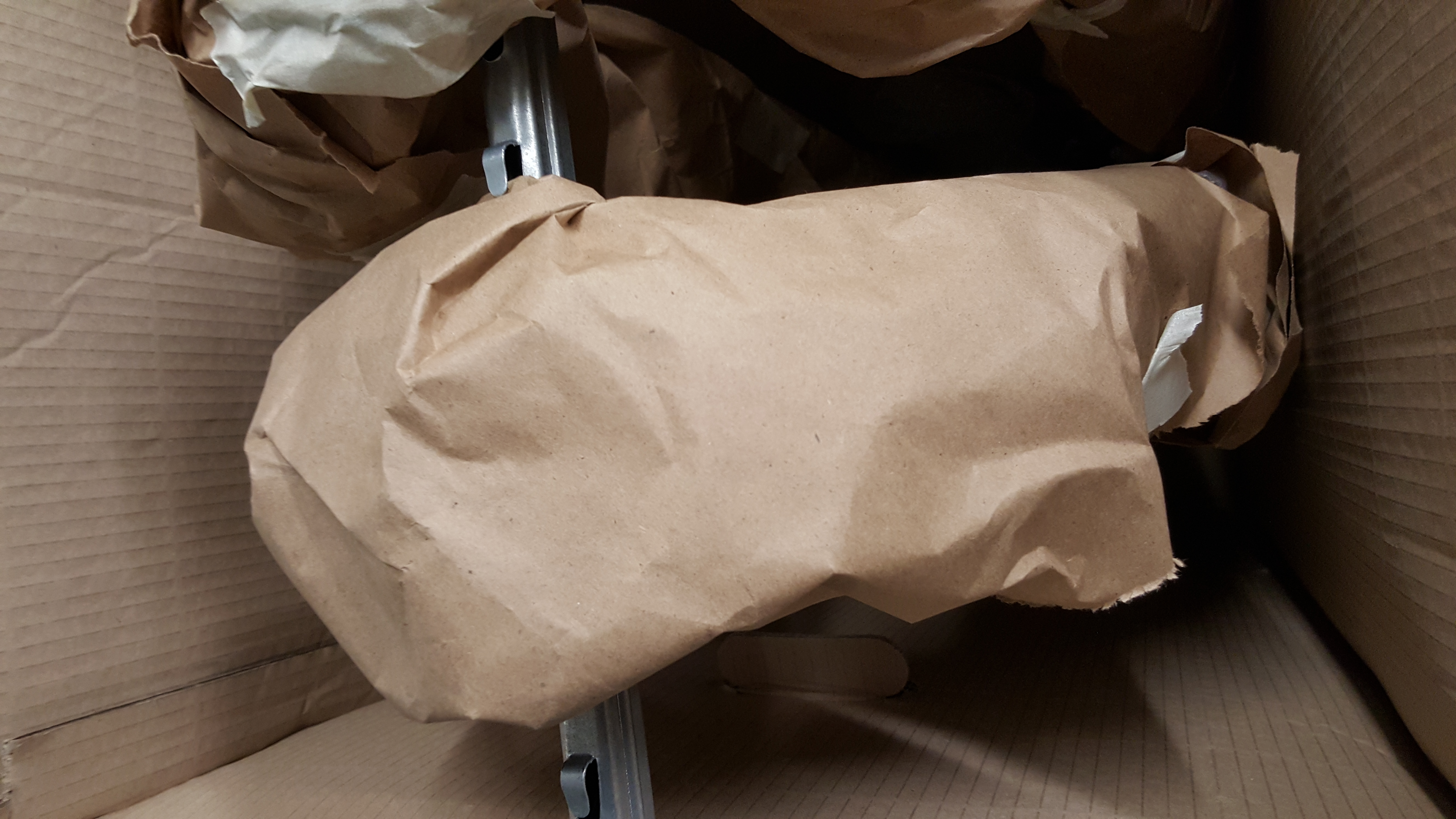

Pick up / Shipping

PATROUILLE SWIFT²
Immatriculation: United states
31240 SAINT-JEAN
FRANCE

BOX L50 x l50 x H150
WEIGHT 3 kg
See parcel Ext Int

HOURS Monday to Friday from 9am to 6pm

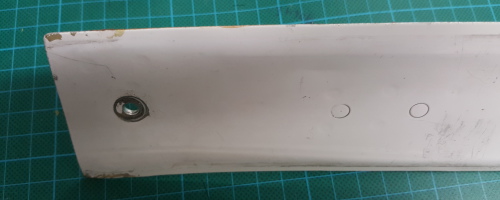

Fuselage

2 Units
Sanding 1000 µm
2µm insulation
Encapsulation varnish airbrush

SUBSTRATS
Wings-belt flexibility rate +:190°

REQUIRED TOOL
1 Airbrush
1 Sandpaper
1 Painting room

NOTE OF PRODUCTION
At customer discretion, the sanding has not been repainted but only varnished.

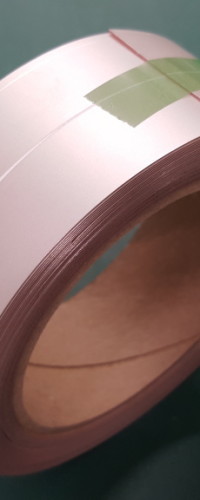

Electro luminescent organs

2 units
1 auxiliary stock
1 Blue native print E010²
Max résolution: 1
Luminance: 190 Cd/m²
Industrial production
Thickness: 2µm
PET 150 Ohm unlaminated

DRY STICKING.

REQUIRED TOOL
1 soft squeegee
1 Voltmeter

COMPLIANCE

Painted or filmed parts are eligible on a hard, flat and less flexible surface

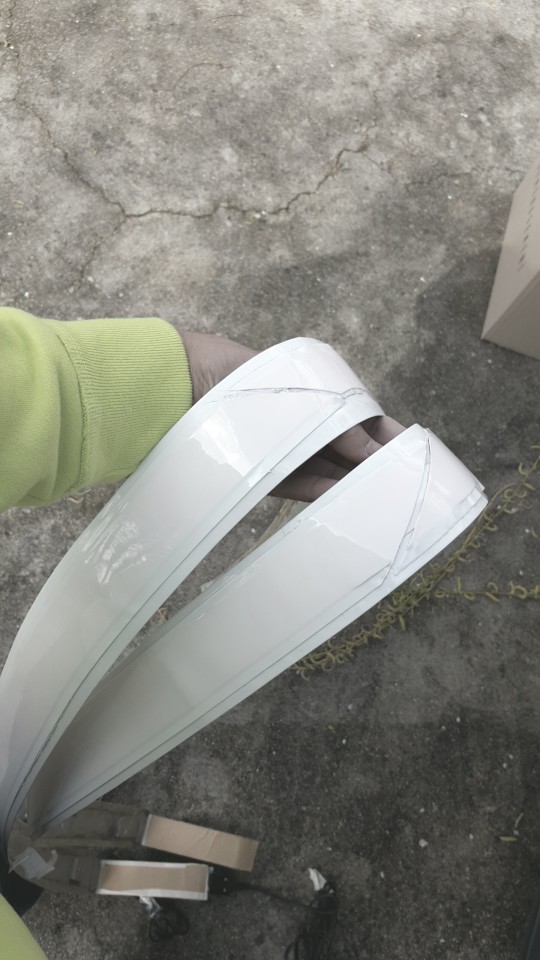

CONVERSION

Asepsie: average See
Total surface converted: 85 % See

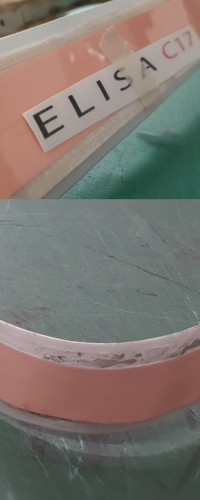

NOTE OF PRODUCTION

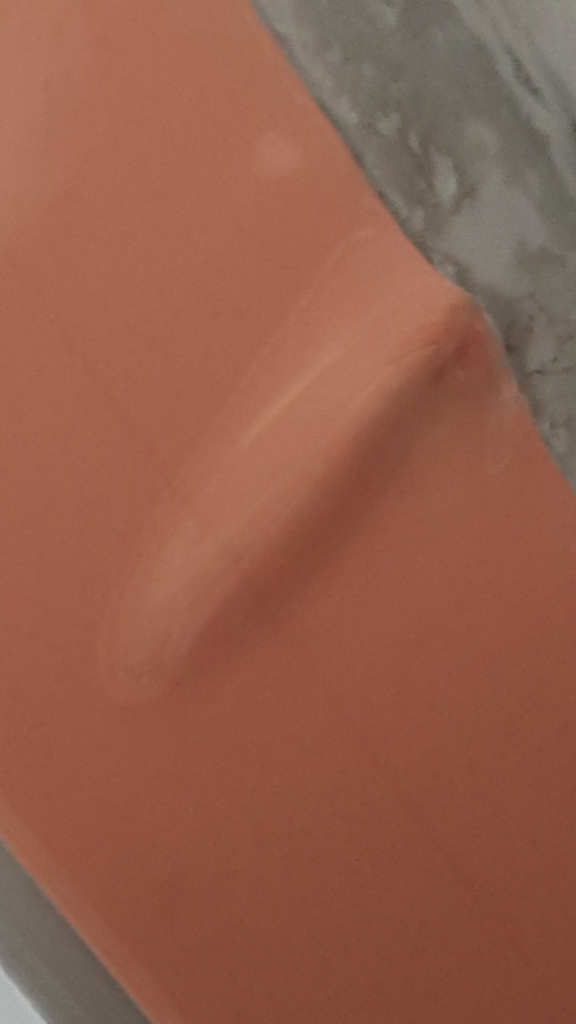

Non heat EL not compatible with the degree of flexibility of the wings. The film has small waves (.5 to 1 mm).

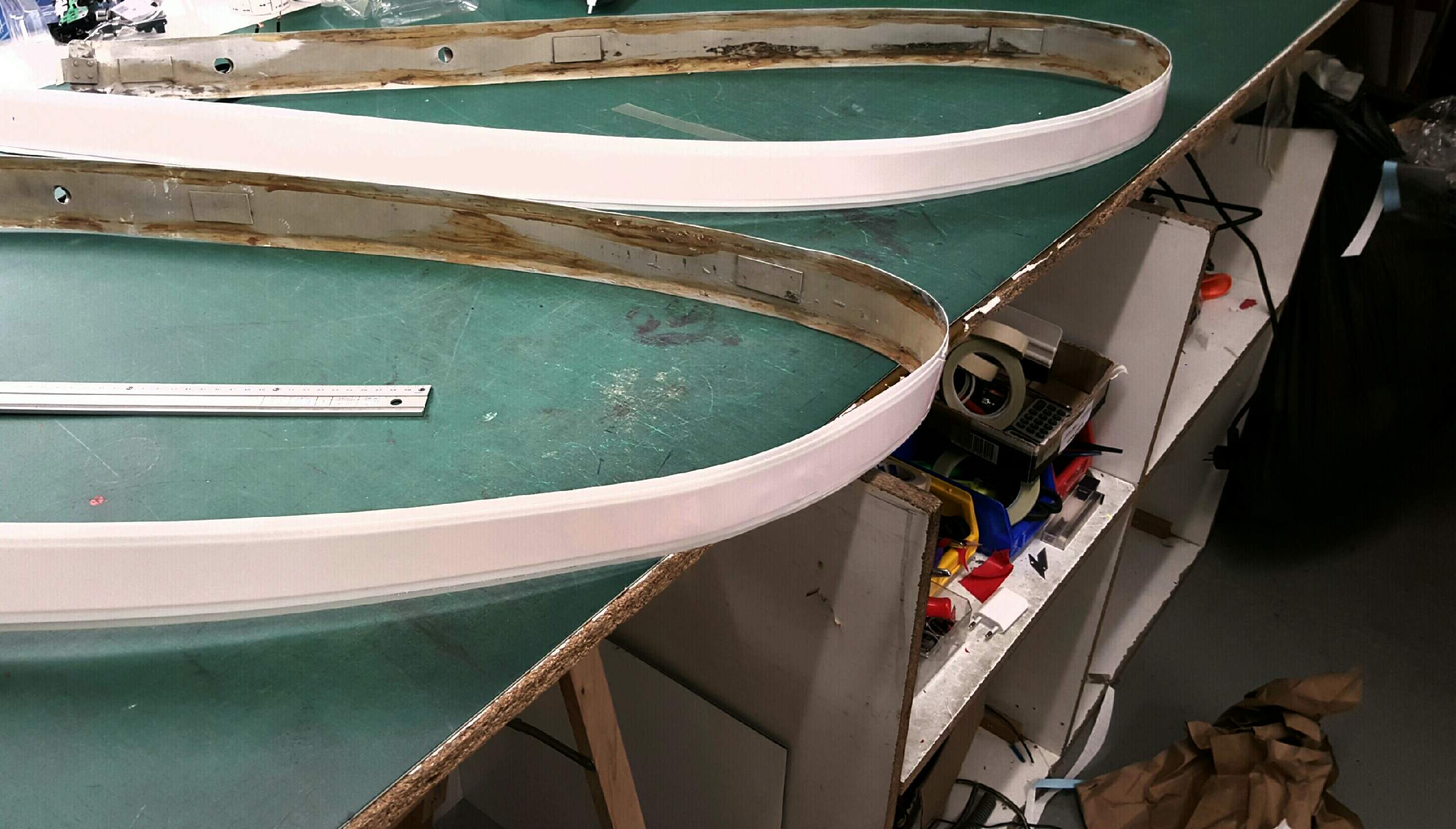

The electroluminescent treatment exhibits transverse invaginations typical of mechanical stress on the conductive film. This results in a punctual detachment or separation. See wings in middle step process

SOLUTION

The use of a thick vinyl's layer as a retro-reflector will fix the last points of strength and increase the visibility of the converted wings-belt lamp on. See >

Wiring

2 units
1 auxilliar wire stock
1 auxiliar plug stock
1 Miscellanous

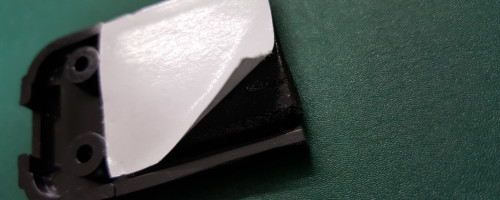

CONNEXION
The plug is insulated, water resistant but not waterproof.
Glued to its support, it allows an easy substitution without removal of electroluminescent organs or box.
The device may intended for outdoor use if integrated in a formwork or in thermo sheath.

REQUIRED MATERIEL
1 Solder station + tin
Wiring
Miscellaneous

ANY OPENING OF THE CONNECTION BOX ENDS ITS GOOD OPERATION.
DEFINITIVE WIRE PROVIDES AT FAA THE FLYING TEST

Conservatory period

Electronic

1 Unit
12 VDC Symbiote Globe swift
Amperage: 0.19 milliamps per in2 / 1.23 milliamps per cm2
A.I. Add-on: not selected
Electromagnetic shield : not selected
FAA Flight qualification : not selected
Clamping
ROHS regulation UL certi: r E319670, 2006/95/EC
Designed in United states

All wings are simultaneously connected.

Administrative

CLASSIFIED BY PAYPAL
October, 21 2016
See Internal circular >
